Biljax AS2100 Adjustable-Height Stage Leg Set, 18"-28"

Stage leg set adjusts from 18"-28" high
For use with Biljax AS2100 staging
Precise height adjustment w/adjustable foot

In Stock

Usually leaves our warehouse the same or next business day, but may take longer during periods of high demand.

Retail: $48.00

Price: $43.99

You Save $4.01 (8.4%)

Quantity:

Estimate Shipping

Biljax AS2100 Adjustable-Height Stage Leg Set, 18"-28"

Easily Adjust Your Stage to a Range of Heights

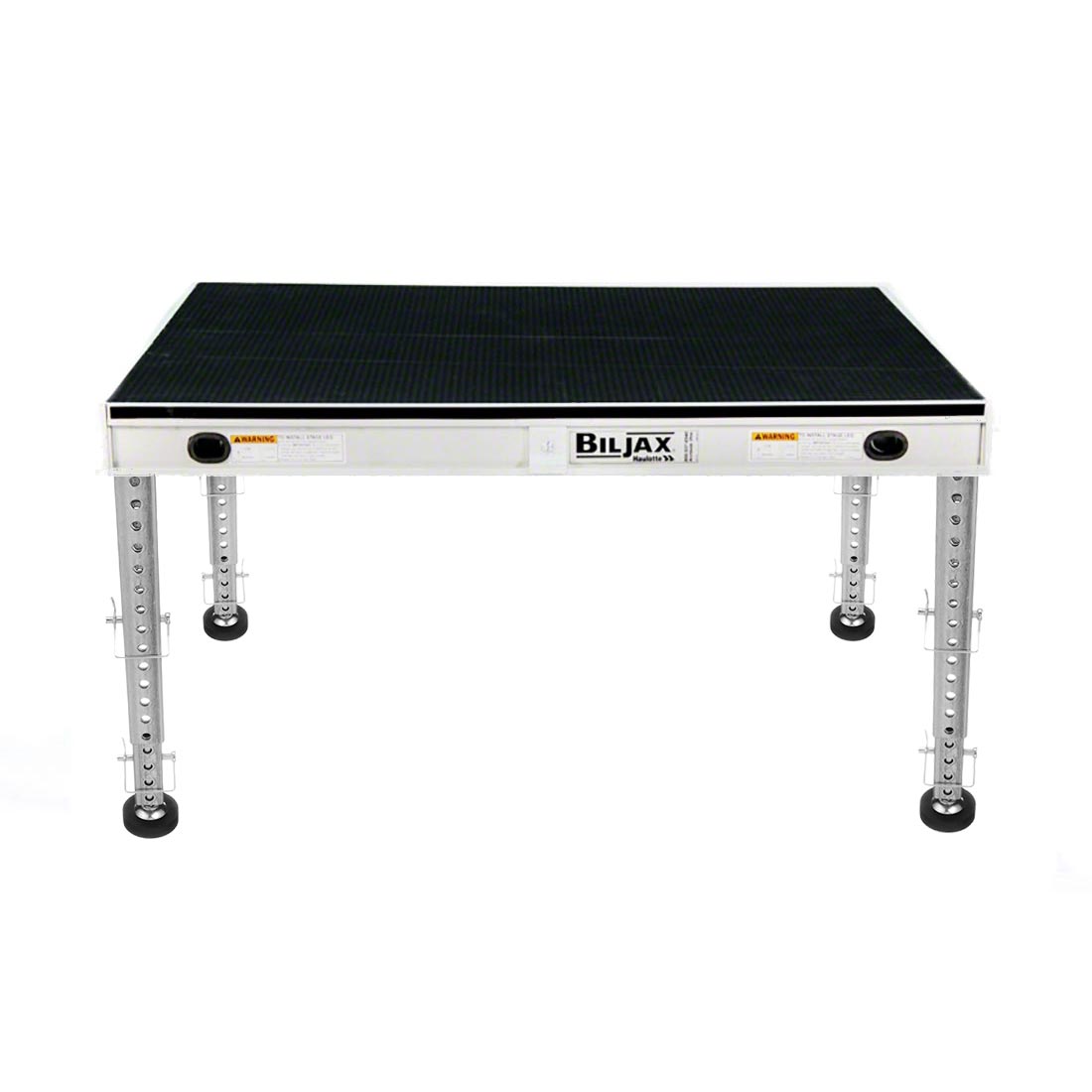

The Biljax AS2100 Staging System is an aluminum stage designed for ease of use and durability. Available in a variety of shapes and dimensions with unique locking hooks, your options for configurations are endless.

The Biljax AS2100 18"-28" Adjustable-Height Stage Leg Set consists of a 16" leg and 16" sleeve made of galvanized steel perforated tubing that "telescope" to create a range of heights, secured by snap pins, with an adjustable rubber base pad. Legs attach easily to Biljax AS2100 stage decks with no tools required.

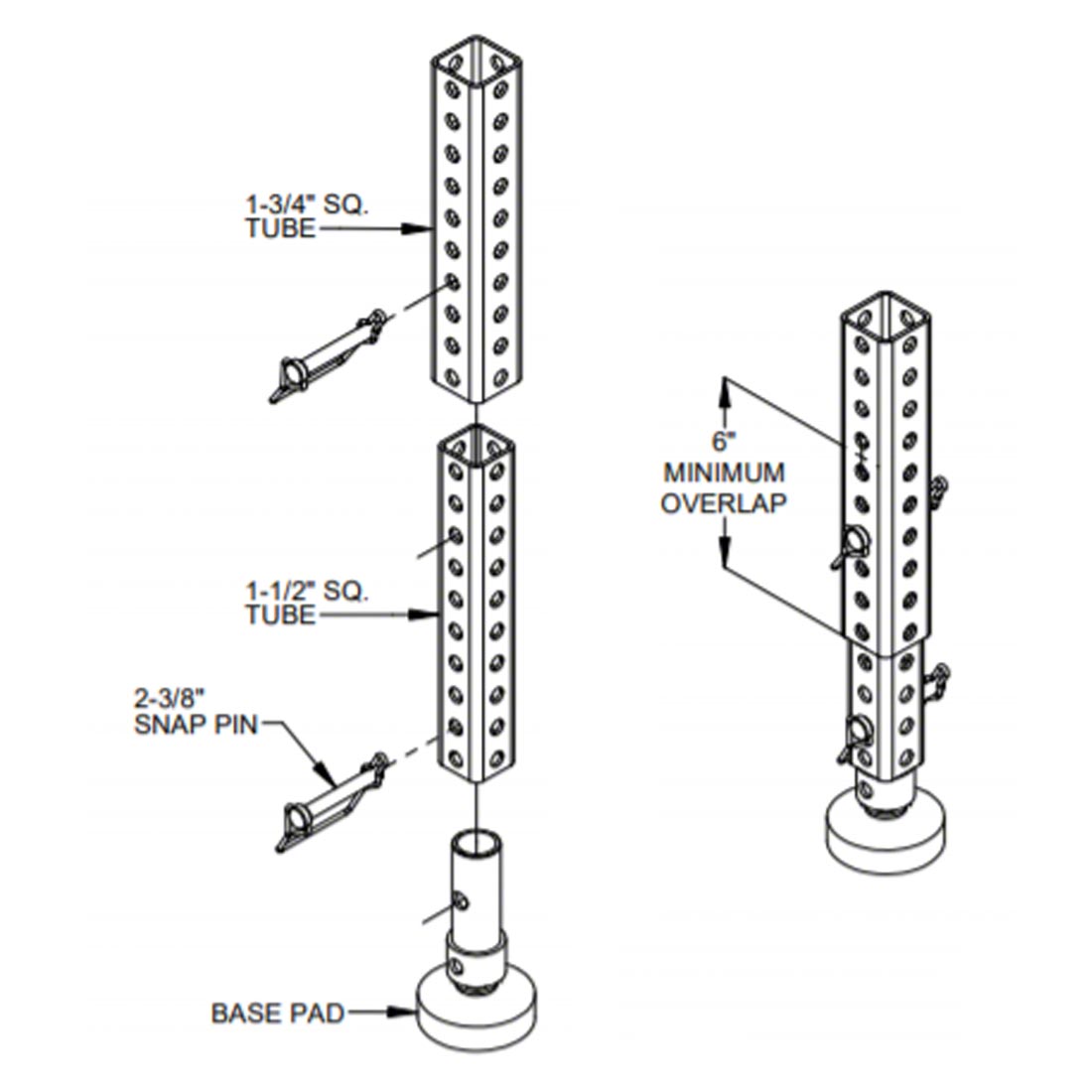

For use with AS2100, just pull the spring-loaded pin on the stage deck, insert the leg (with the 1-3/4" section at the top) into the corner leg socket, release the pin and tighten thumbscrew attached to the socket. The base pad attaches to the 1-1/2" section at the bottom using a snap pin.

Also available as 12"-18", 28"-44" or 36"-63".

Features

Can be set up by one person
Meets or exceeds all IBC and UBC code requirements
Adjustable legs change heights easily with a snap pin

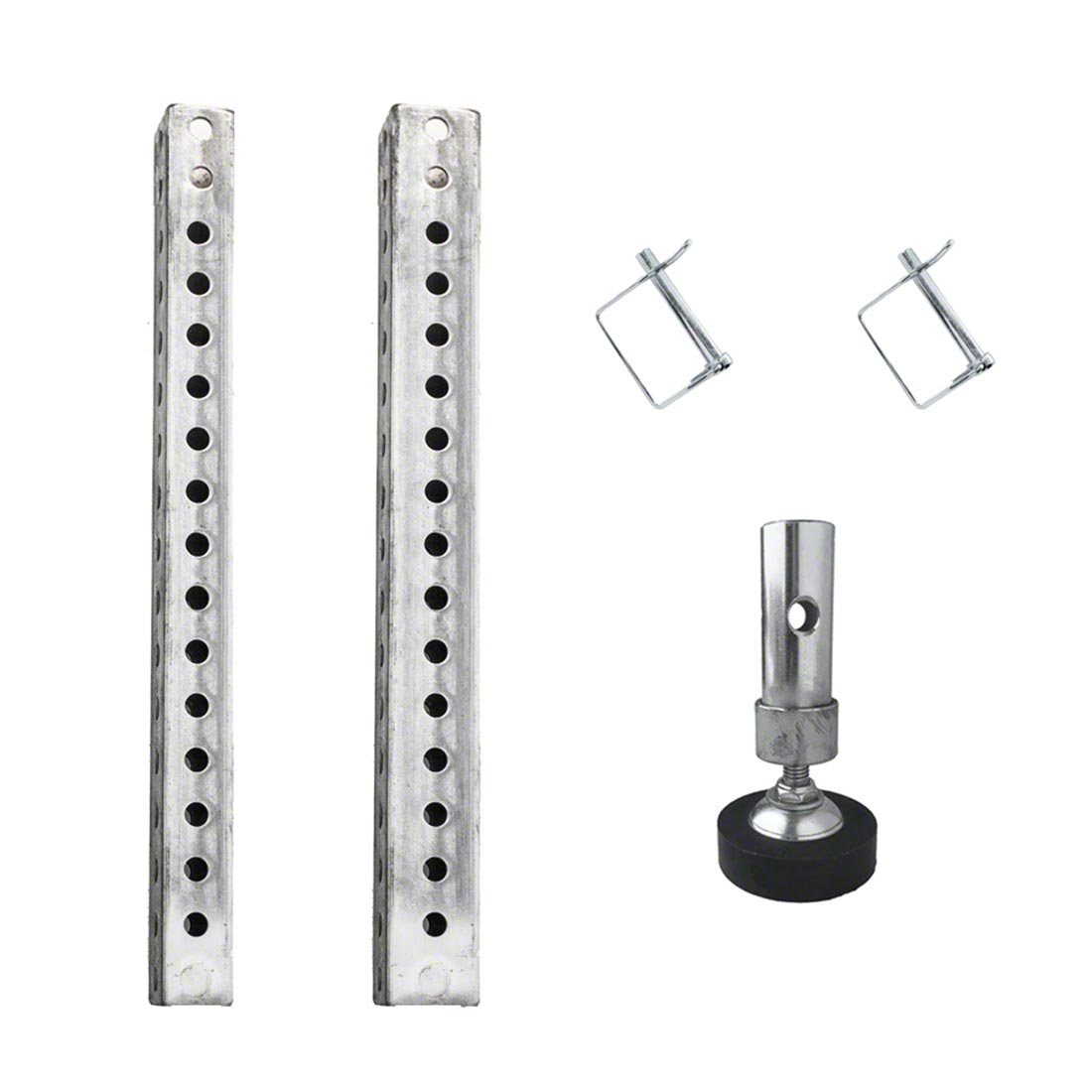

Package Contents

1 - Biljax Leg & Sleeve Set (16" leg/16" sleeve)
2 - Biljax 2-3/8" Snap Pin
1 - Biljax Rubber Base Pad with Collar

Video

Additional Information

Dimensions:
- Assembled: 1.75"W x 1.75"D x 18"-28"H
- Outer Sleeve: 1.75"W x 1.75"D x 16"
- Inner Leg: 1.5"W x 1.5"D x 16"
Weight: 7.7 lbs
Download: Assembly Instructions (PDF)
