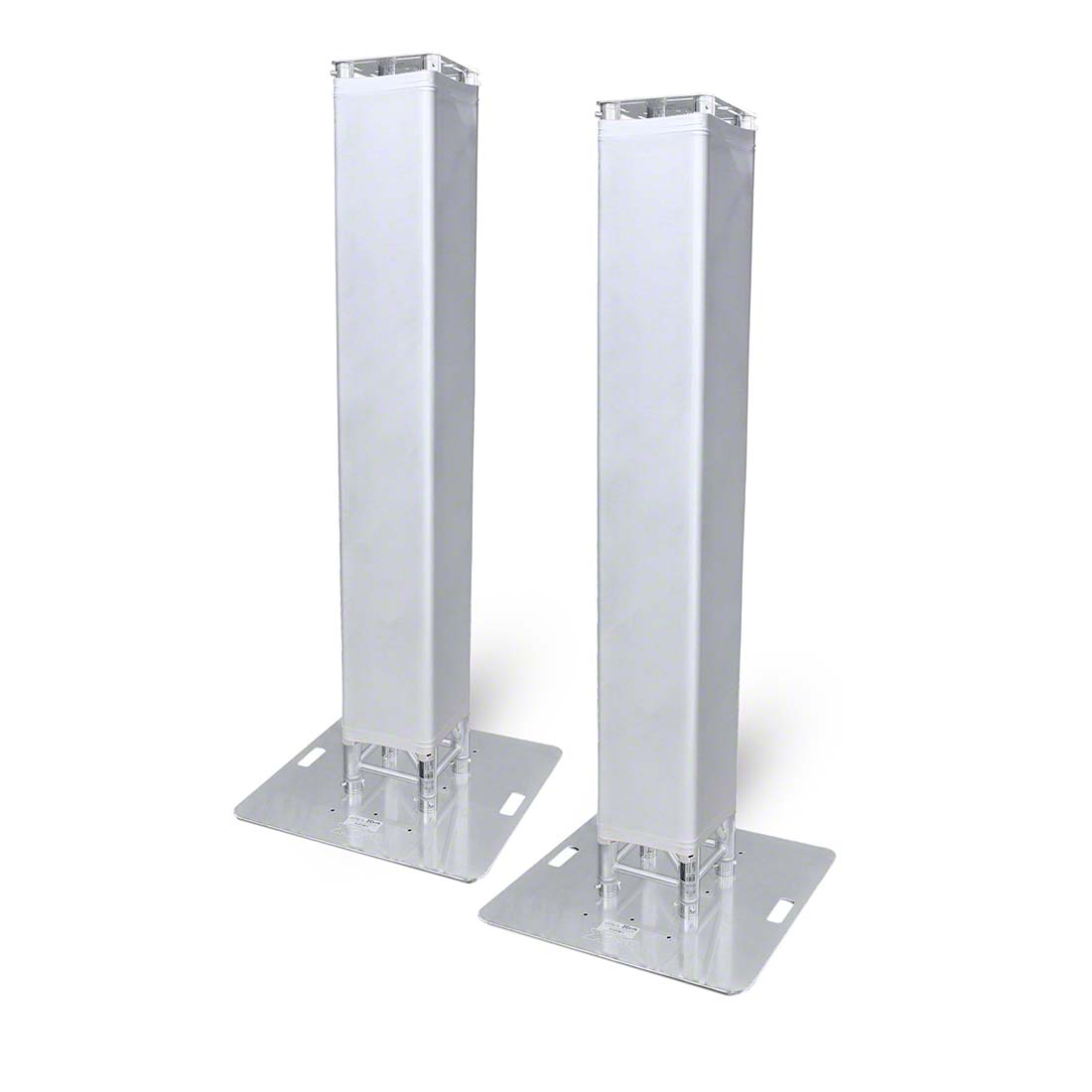

The ProX K-Truss 1m Square Truss Totem Package is a package of the most popular products that are used for DJ totems. At the core is two of the ProX F34 Truss (KT-F34SQ328), which is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ Booths & DJ Totems. The truss sections are accompanied by two 24" x 24" 6mm aluminum base plates (XT-BP24A MK2), and two 12" x 12" F34 6mm aluminum top plates with slots and mounting holes (XT-BP12A). You can use the totems exposed as "all-aluminum" or dress them up for a smooth, finished appearance with the included white Lycra-Spandex cover.

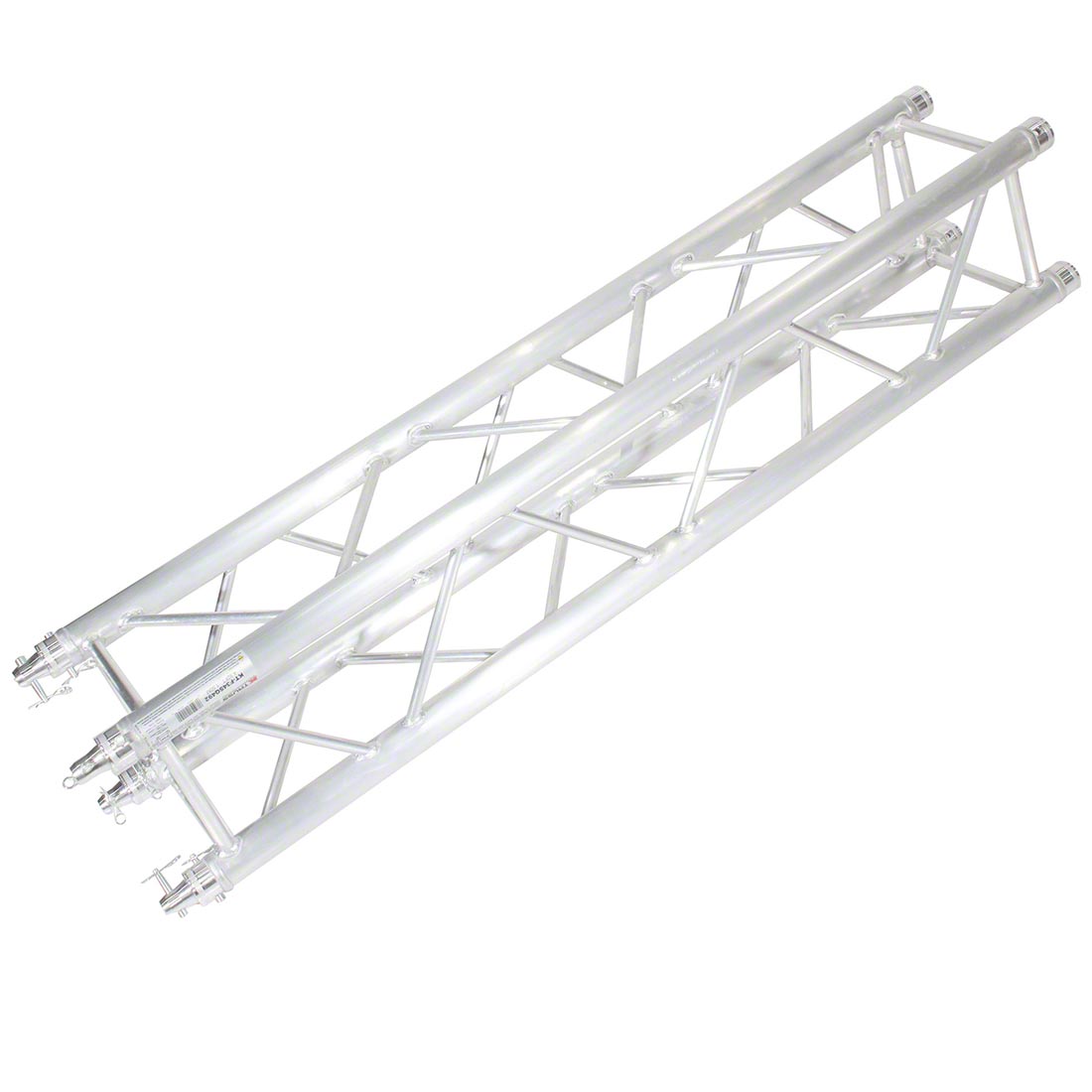

The ProX KT Series F34 Truss is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ totems, architectural non-loadbearing designs, and much more. It is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced Standard Uniform Load Rating designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

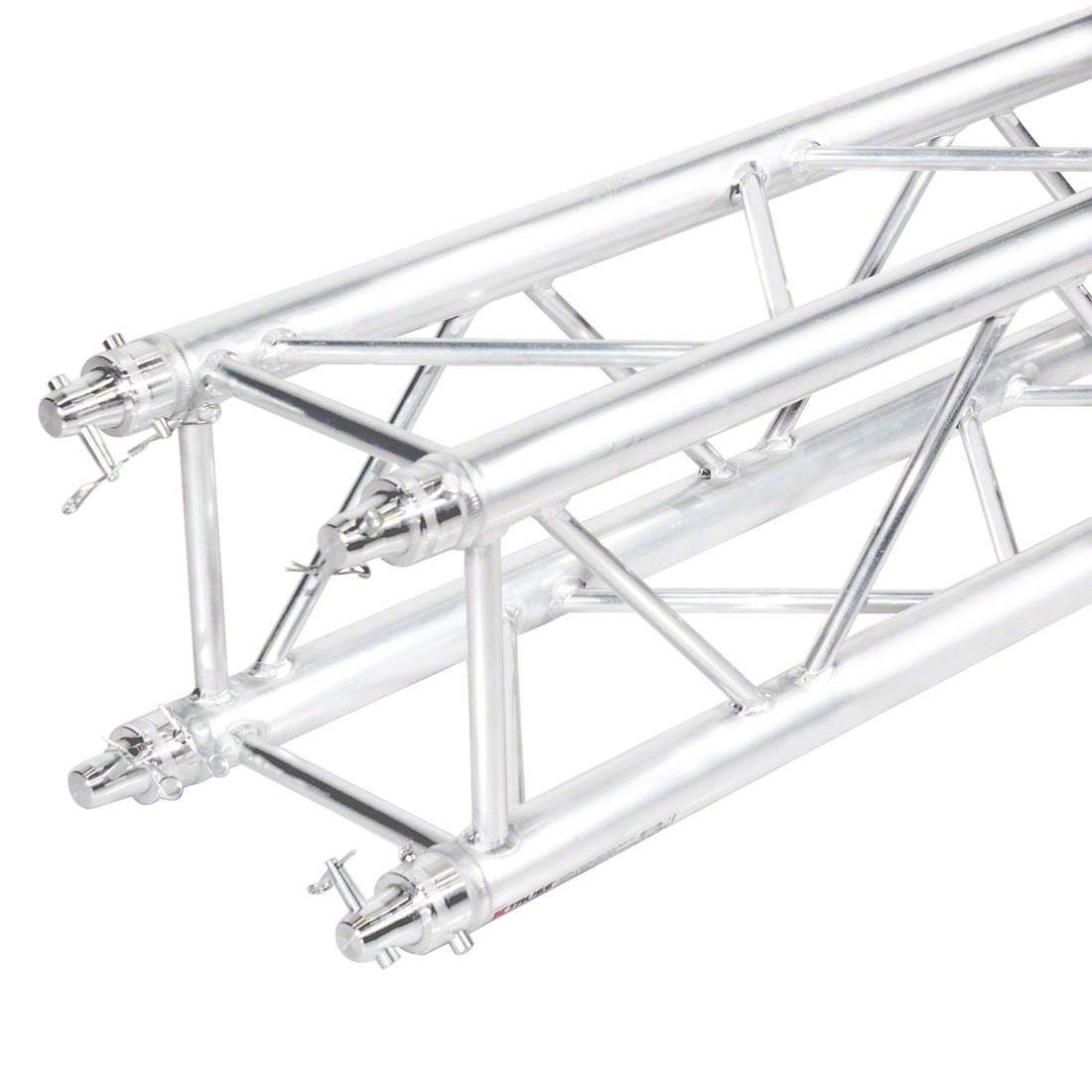

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Also available as 1.5m truss package, 2m truss package or 2.5m truss package. To complete your set-up, check out our DJ facades and LED lighting!
The ProX K-Truss 1m Square Truss Totem Package is a package of the most popular products that are used for DJ totems. At the core is two of the ProX F34 Truss (KT-F34SQ328), which is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ Booths & DJ Totems. The truss sections are accompanied by two 24" x 24" 6mm aluminum base plates (XT-BP24A MK2), and two 12" x 12" F34 6mm aluminum top plates with slots and mounting holes (XT-BP12A). You can use the totems exposed as "all-aluminum" or dress them up for a smooth, finished appearance with the included white Lycra-Spandex cover.
The ProX KT Series F34 Truss is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ totems, architectural non-loadbearing designs, and much more. It is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced Standard Uniform Load Rating designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Also available as 1.5m truss package, 2m truss package or 2.5m truss package. To complete your set-up, check out our DJ facades and LED lighting!
- For lightweight/light-duty
- Includes white Lycra Spandex truss cover
- Tolerance free standard conical connector
- 12" top plate has CNC cut slotted holes for easy mounting of lighting/accessories and large cut hole for cable routing
KTruss Features:
- Material: EN-AW T6-5052 Aluminium Display Grade Quality
- Main tube wall thickness of .06in (1.5mm)
- Constructed to the highest quality by certified welders
- K Series Trussing is an Economy Light-Structural product primarily designed for display structures
- The K-Truss™ Standard Uniform Load Rating is 75% lower than the 2mm SQ series
- Compatible in SIZE ONLY w/most major brands F34 Box Square Truss
- Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments!

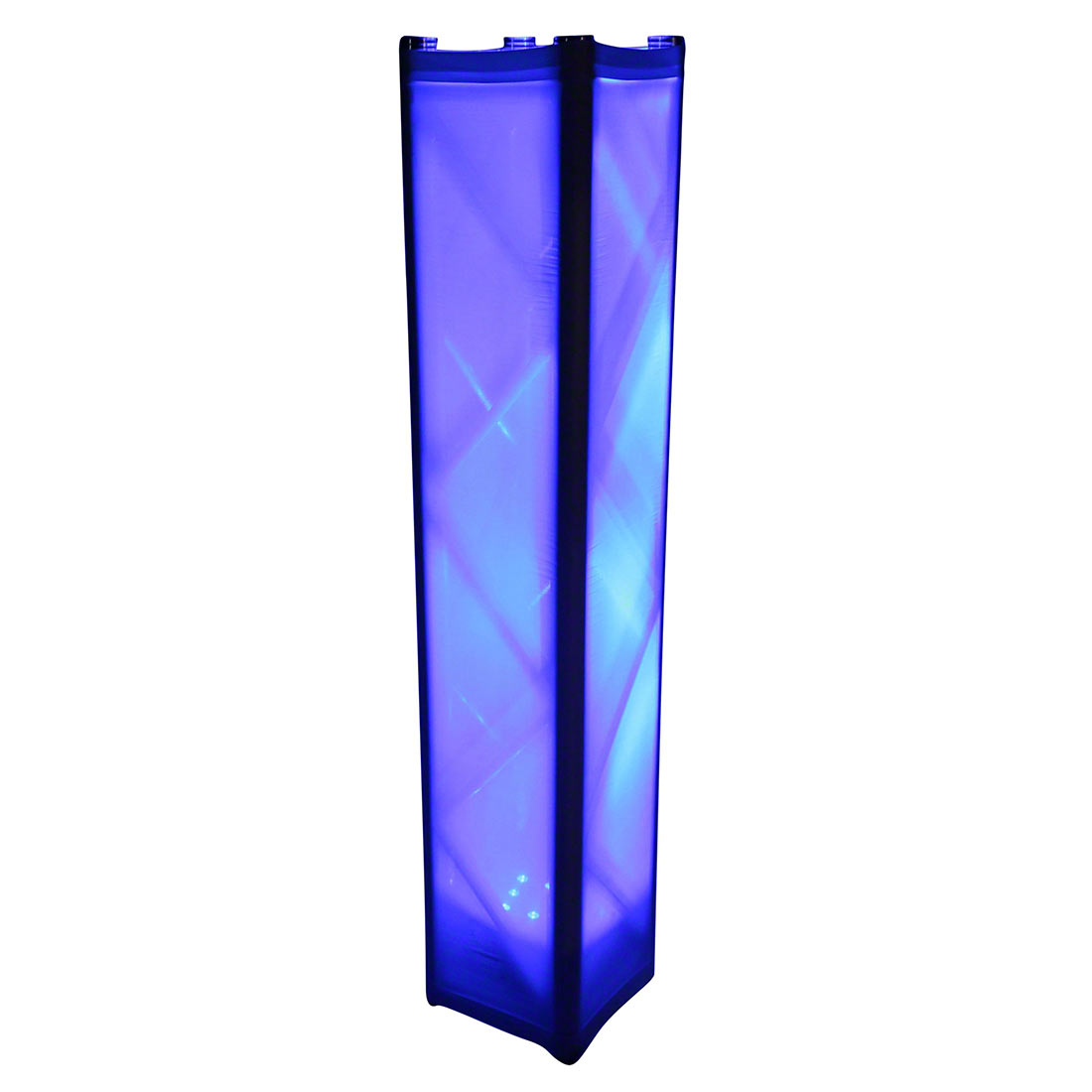

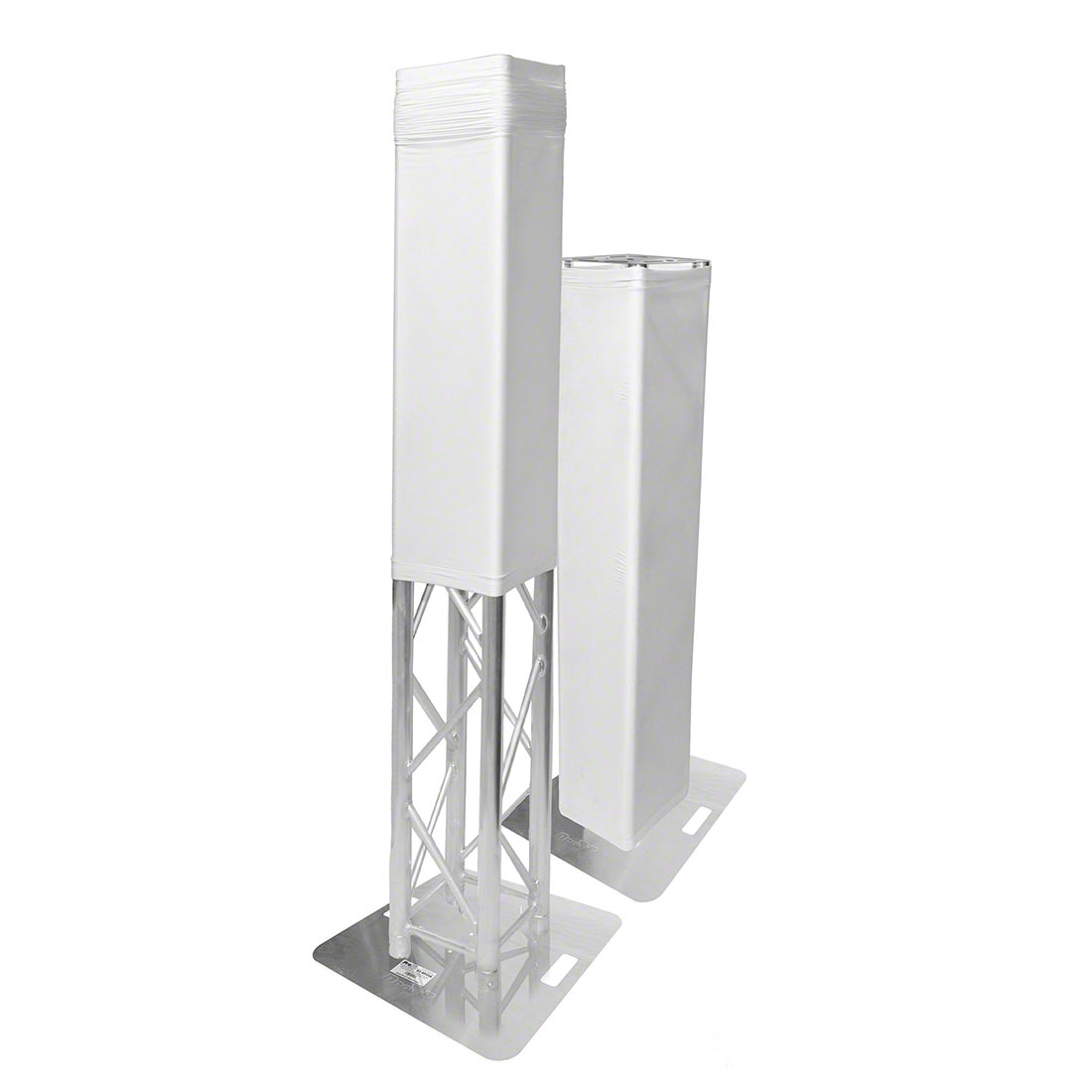

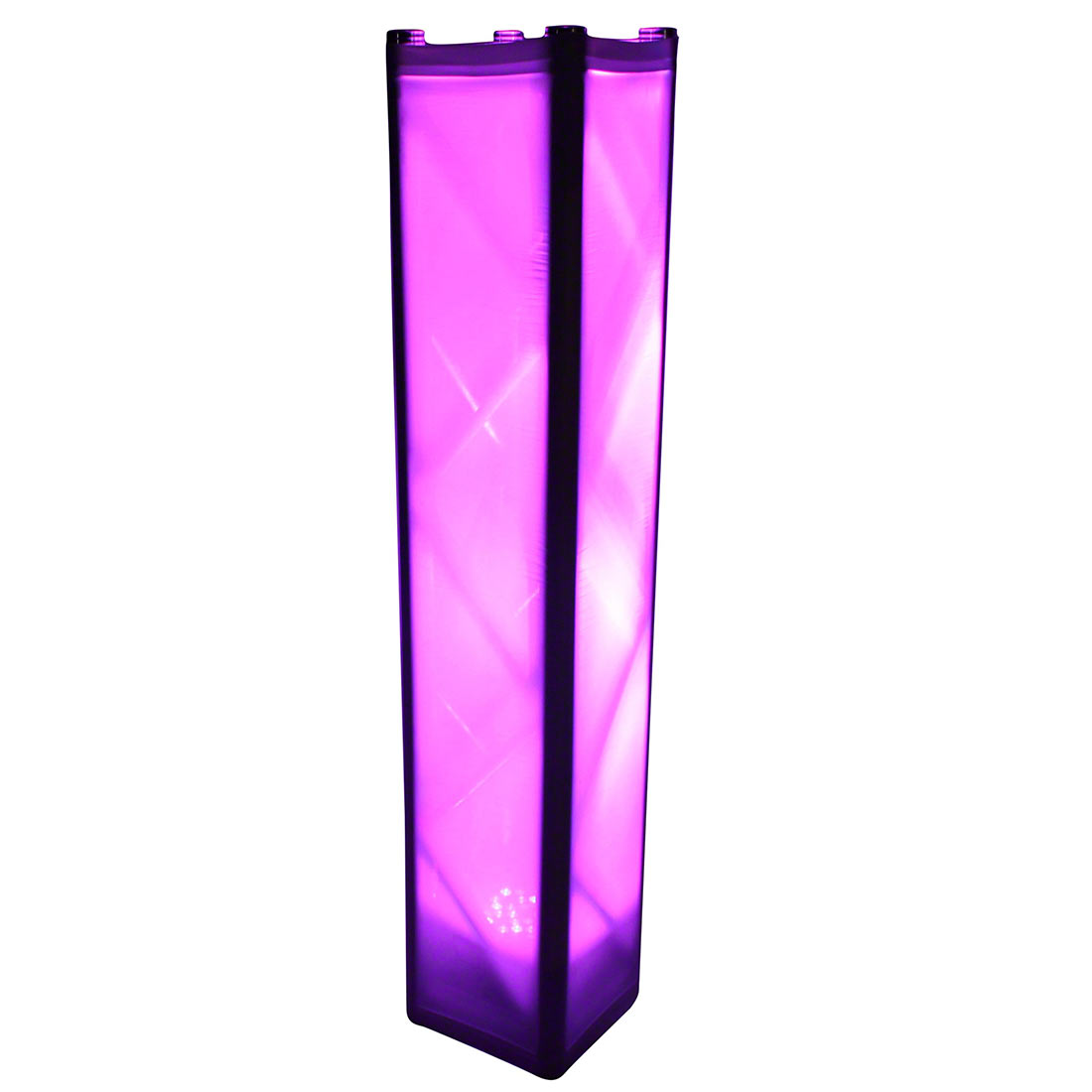

Scrim Totem Cover Features:
- Universal fit for all brands
- Fire Retardant Coated
- 92% Terylene - 8% Spandex
- Slides over the box
- Long lasting quality
- No Velcro Needed
- Wrinkle-free material
- Washing machine washable
- Truss Dimensions:
- Height: 1m (3.28 ft)
- Width: 290mm (11.42 in)
- Height: 290mm (11.42 in)
- Main Tube: 50mm (2 in)
- Braces: 16mm (.63 in)
- Wall Thickness: 1.5mm (.06 in)
- 1-Year Manufacturer Limited Warranty
- Download: K-Truss Load Rating Chart
