The Smart Alternative to Costly Wooden Ramps
The EZ-ACCESS® GATEWAY™ 3G Solid Surface Portable Ramp is the perfect solution for temporary or semi-permanent home or business access when mobility needs extend beyond the scope of a conventional portable ramp but you wouldn't want to install a more costly, permanent system. Designed for the rigors of repeated, everyday use in all weather conditions, the long-lasting aluminum construction ensures it will never rust, while the seamless, slip-resistant surface provides increased traction and safety. With a 3 foot wide non-skid platform and 3-inch high raised side rails, the ramp is safe, secure and stable for people in wider wheelchairs and scooters or those who use walkers, canes, or crutches. To make the conversion from ramp to ground smooth on most surface types, the Gateway 3G Ramp offers a self-adjusting ground transition plate.
Gateway 3G portable ramps can be easily moved or relocated as needs change, but also come with two pre-drilled mounting holes to permanently install the ramps if necessary This ramp has a 1000 lb weight capacity and can accommodate most scooters and powerchairs. Available in 8 lengths and with choice of handrail option - two-line, vertical picket style or none.
The Smart Alternative to Costly Wooden Ramps
The EZ-ACCESS® GATEWAY™ 3G Solid Surface Portable Ramp is the perfect solution for temporary or semi-permanent home or business access when mobility needs extend beyond the scope of a conventional portable ramp but you wouldn't want to install a more costly, permanent system. Designed for the rigors of repeated, everyday use in all weather conditions, the long-lasting aluminum construction ensures it will never rust, while the seamless, slip-resistant surface provides increased traction and safety. With a 3 foot wide non-skid platform and 3-inch high raised side rails, the ramp is safe, secure and stable for people in wider wheelchairs and scooters or those who use walkers, canes, or crutches. To make the conversion from ramp to ground smooth on most surface types, the Gateway 3G Ramp offers a self-adjusting ground transition plate.
Gateway 3G portable ramps can be easily moved or relocated as needs change, but also come with two pre-drilled mounting holes to permanently install the ramps if necessary This ramp has a 1000 lb weight capacity and can accommodate most scooters and powerchairs. Available in 8 lengths and with choice of handrail option - two-line, vertical picket style or none.
- Ideal for temporary or semi-permanent placement
- Rugged aluminum allows high-traffic use in all weather - will not rust or rot
- One-piece ramp design means no assembly is required
- Adjustable threshold ensures a smooth approach at multiple angles
- Textured extruded aluminum surface for increased traction

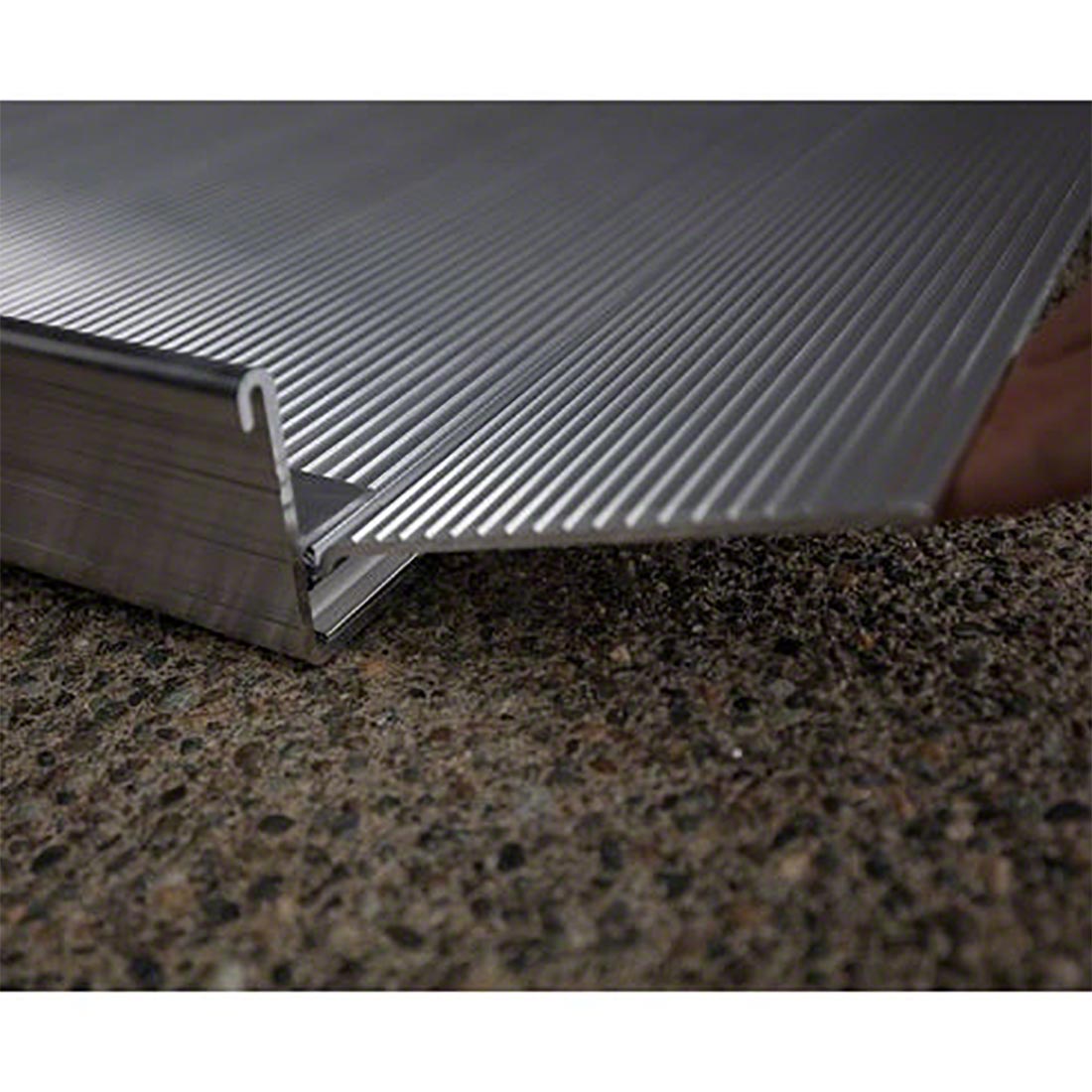

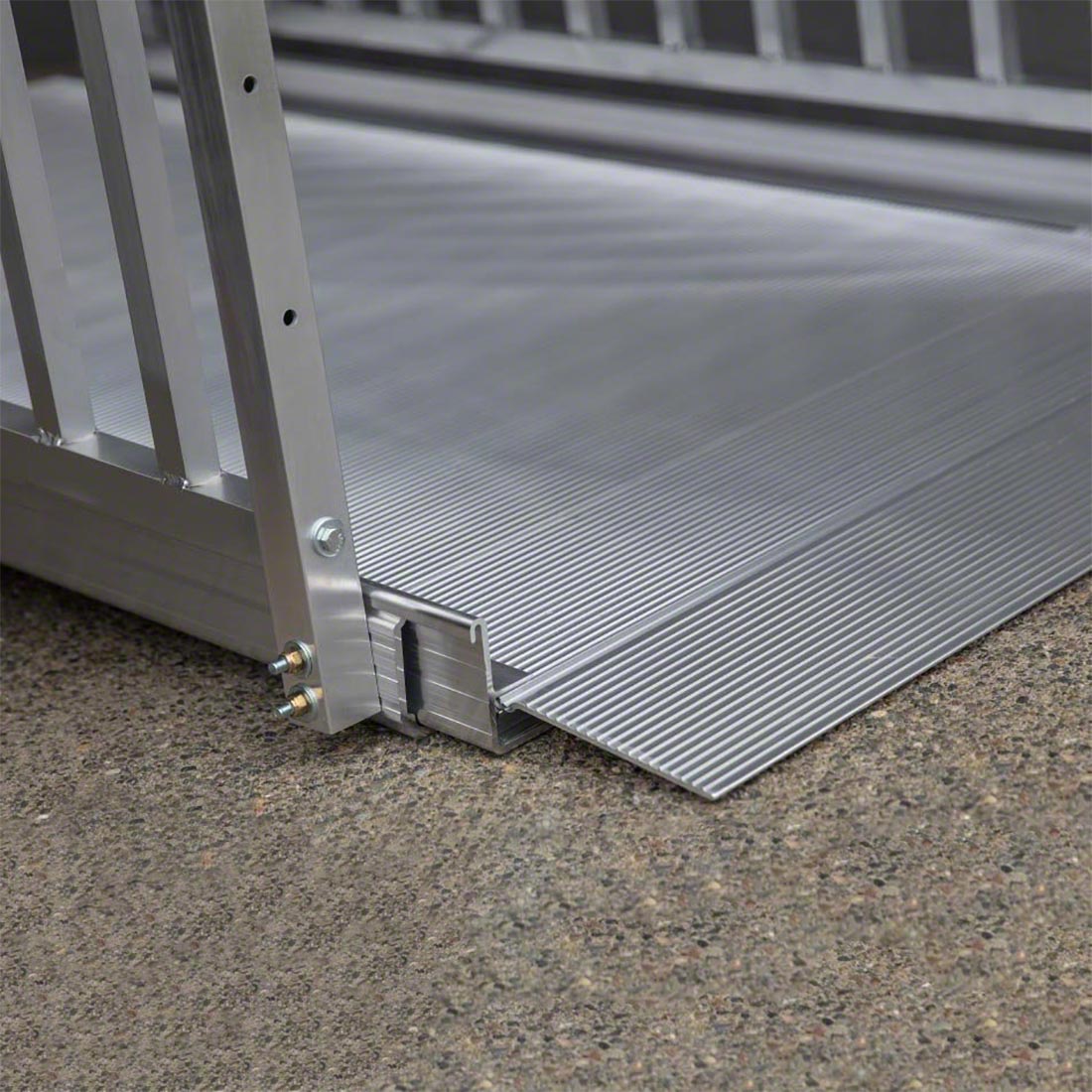

- Self-adjusting ground transition plate
- Raised side rails (curbs) help to prevent mobility devices from driving off edge of ramp

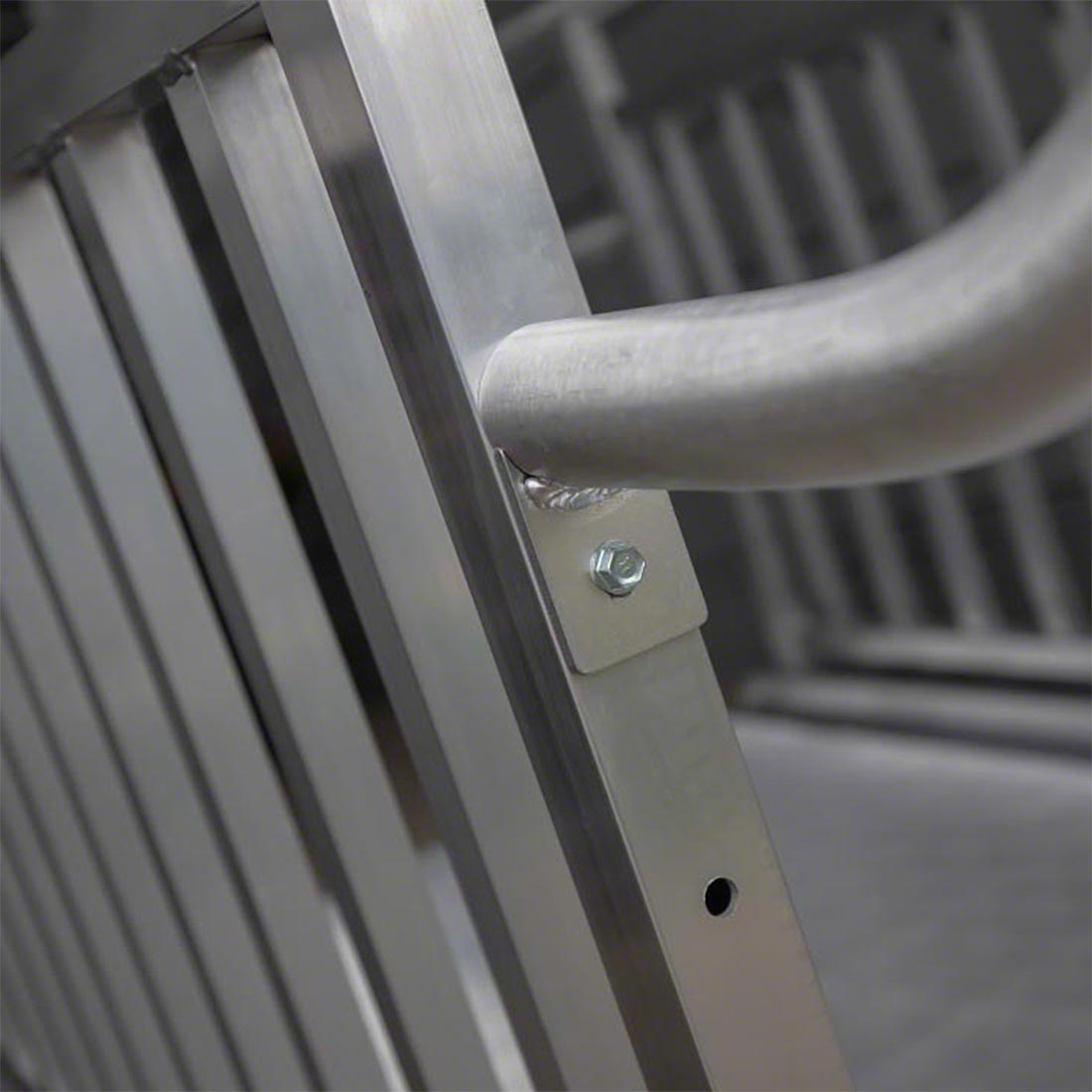

- Smooth, continuous top rails are welded on for extra strength and durability
- Manufactured from high-strength, lightweight aluminum
- Available in 8 lengths from 3' to 10' long
- 1000 lb weight capacity
Gateway 3G Without Handrails
| GATEWAY3G 03 | GATEWAY3G 04 | GATEWAY3G 05 | GATEWAY3G 06 | GATEWAY3G 07 | GATEWAY3G 08 | GATEWAY3G 09 | GATEWAY3G 10 |
|---|
| Made of Aluminum | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Slip-Resistant surface | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Usable Size | 3'L x 36"W | 4'L x 36"W | 5'L x 36"W | 6'L x 36"W | 7'L x 36"W | 8'L x 36"W | 9'L x 36"W | 10'L x 36"W |
| Overall Size | 3'L x 37"W x 3.5"H | 4'L x 37"W x 3.5"H | 5'L x 37"W x 3.5"H | 6'L x 37"W x 3.5"H | 7'L x 37"W x 3.5"H | 8'L x 37"W x 3.5"H | 9'L x 37"W x 3.5"H | 10'L x 37"W x 3.5"H |
| Accommodates heights up to | 4" | 6" | 7" | 9" | 10" | 12" | 13" | 15" |
| Weight | 24 lbs | 30 lbs | 36 lbs | 42 lbs | 50 lbs | 54 lbs | 68 lbs | 72 lbs |
| Weight Capacity | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs |
| For wheelchairs & scooters | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

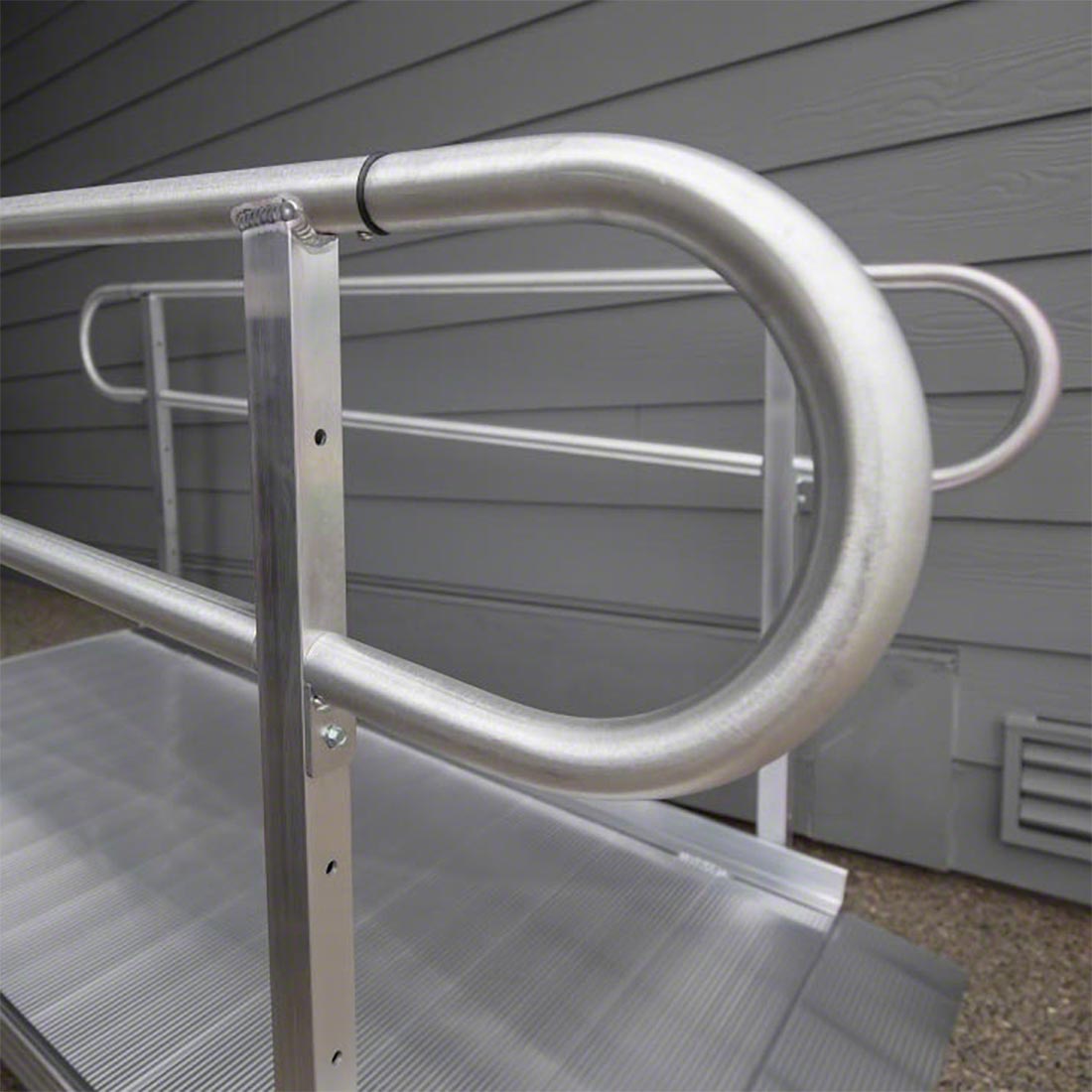

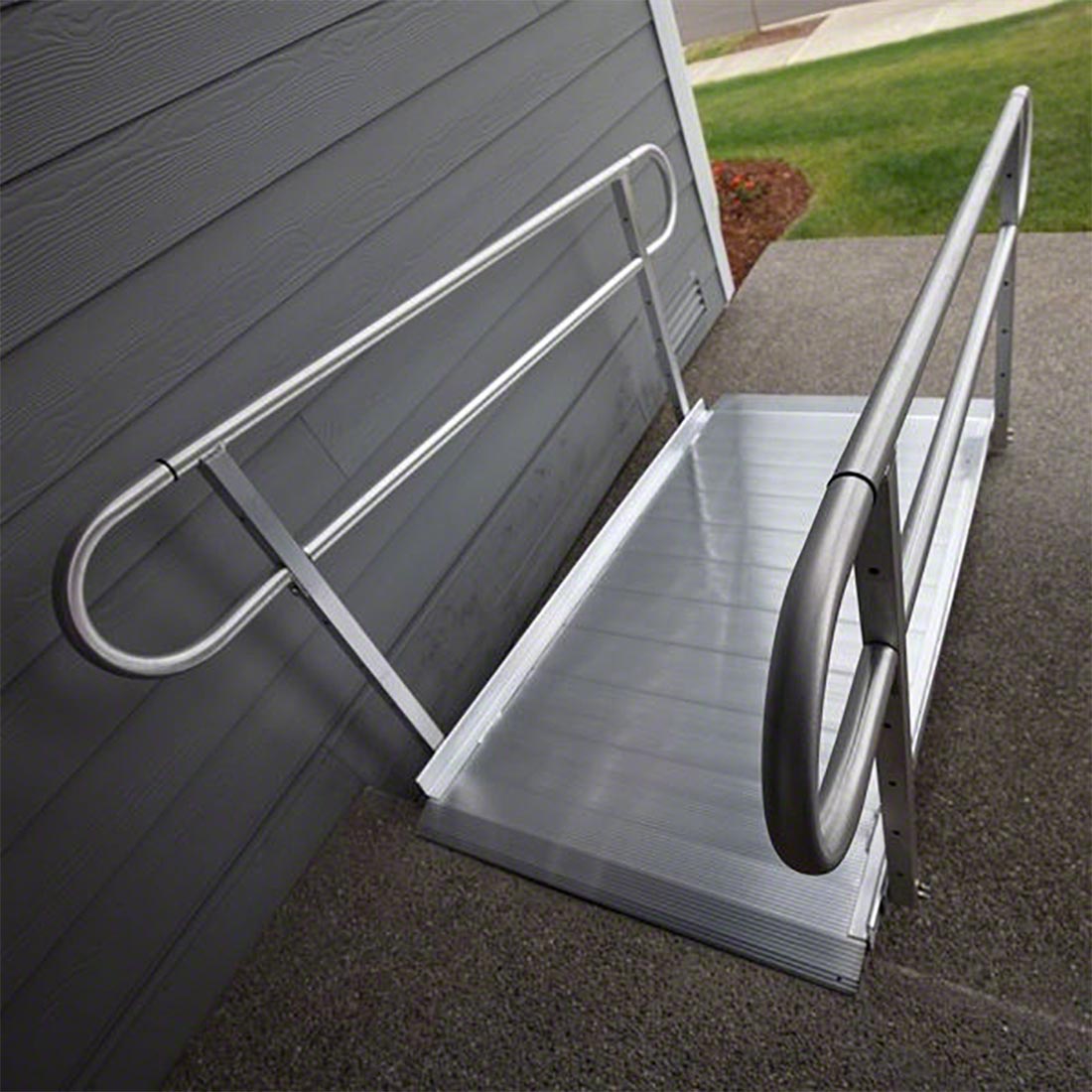

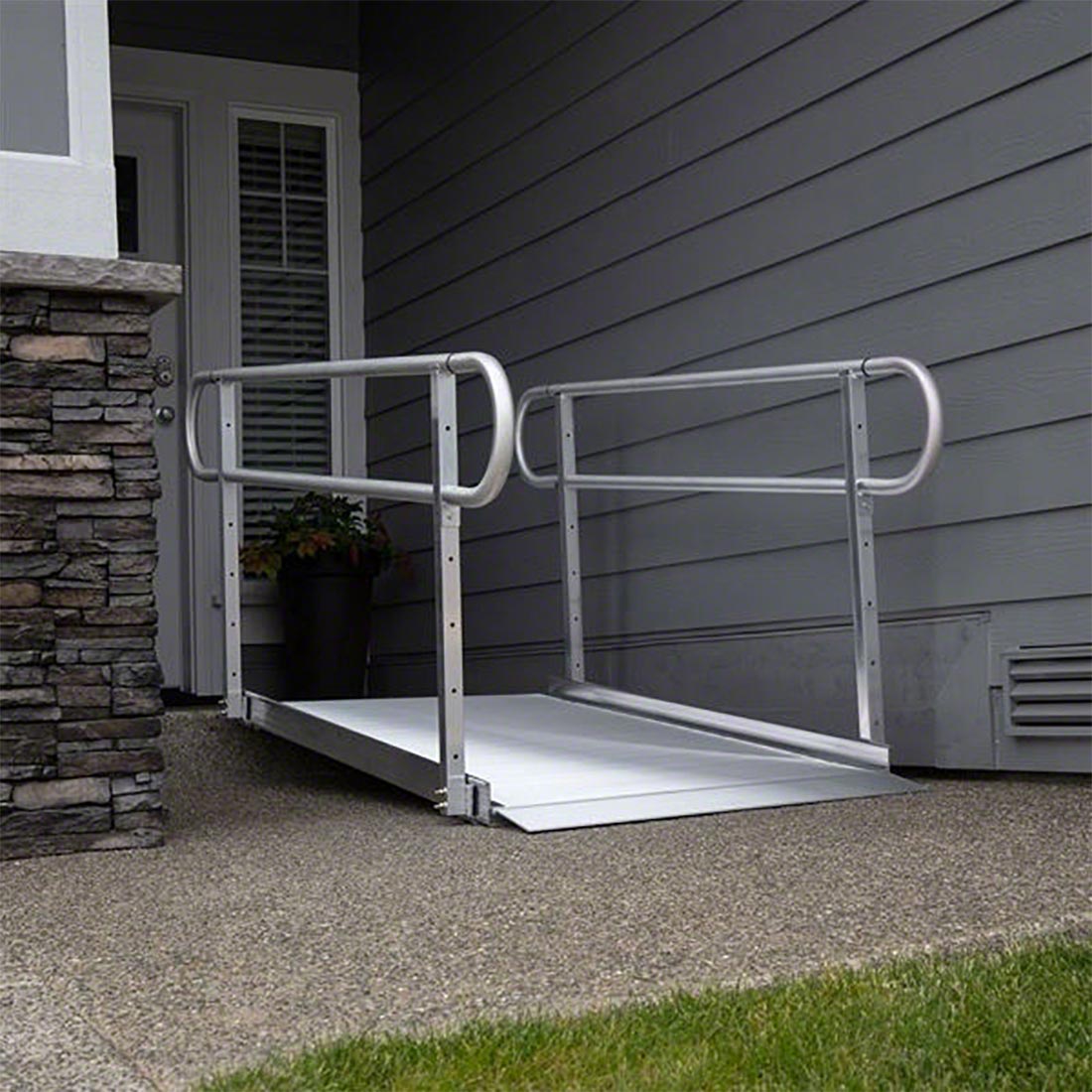

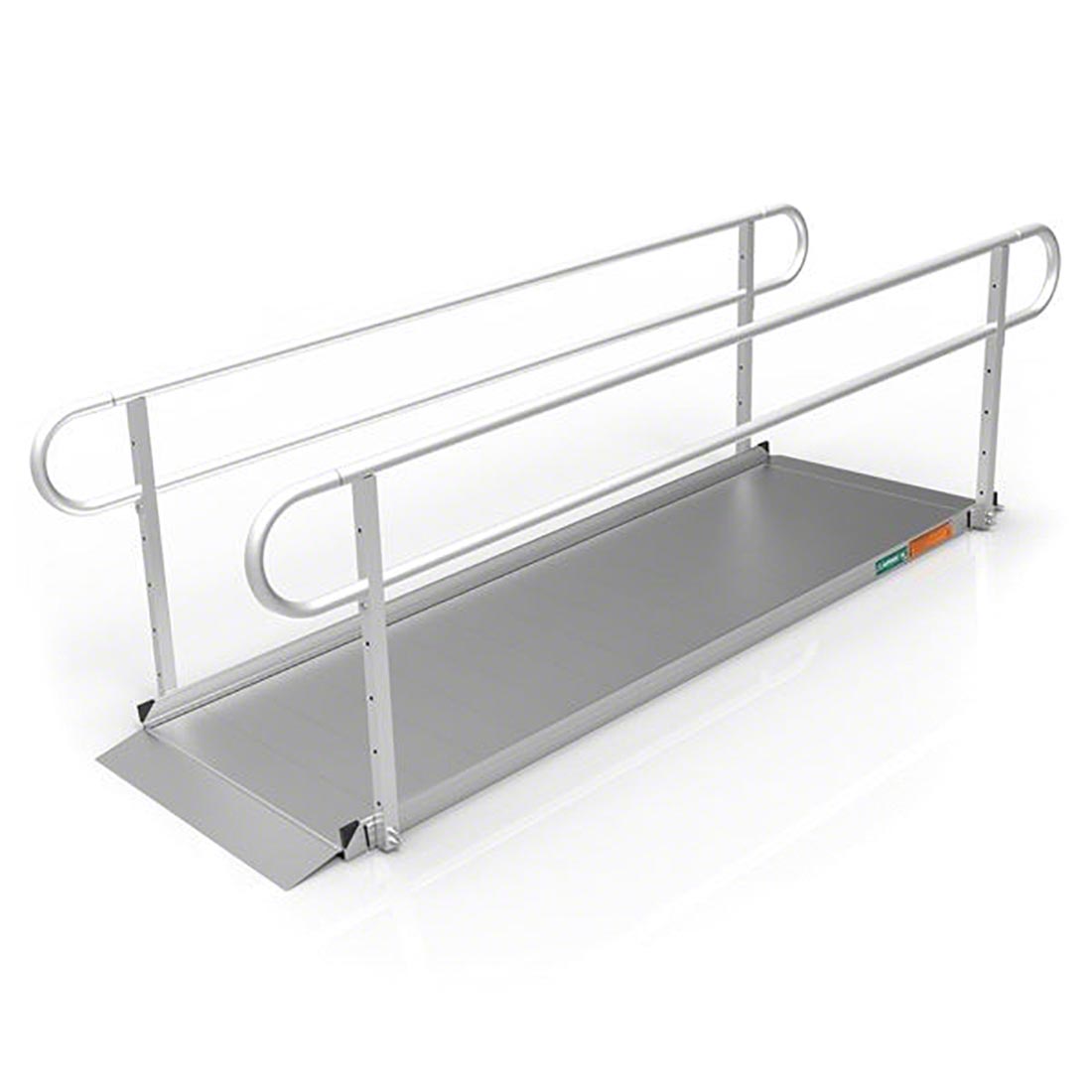

Gateway 3G With Two-Line Handrails
| GATEWAY3G 03TL | GATEWAY3G 04TL | GATEWAY3G 05TL | GATEWAY3G 06TL | GATEWAY3G 07TL | GATEWAY3G 08TL | GATEWAY3G 09TL | GATEWAY3G 10TL |
|---|
| Made of Aluminum | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Slip-Resistant surface | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Usable Size | 3'L x 36"W x 34.5"H | 4'L x 36"W x 34.5"H | 5'L x 36"W x 34.5"H | 6'L x 36"W x 34.5"H | 7'L x 36"W x 34.5"H | 8'L x 36"W x 34.5"H | 9'L x 36"W x 34.5"H | 10'L x 36"W x 34.5"H |
| Overall Size | 3'L x 41.75"W x 36"H | 4'L x 41.75"W x 36"H | 5'L x 41.75"W x 36"H | 6'L x 41.75"W x 36"H | 7'L x 41.75"W x 36"H | 8'L x 41.75"W x 36"H | 9'L x 41.75"W x 36"H | 10'L x 41.75"W x 36"H |
| Accommodates heights up to | 4" | 6" | 7" | 9" | 10" | 12" | 13" | 15" |
| Weight | 44 lbs | 52 lbs | 60 lbs | 68 lbs | 74 lbs | 82 lbs | 96 lbs | 106 lbs |
| Weight Capacity | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs |
| For wheelchairs & scooters | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

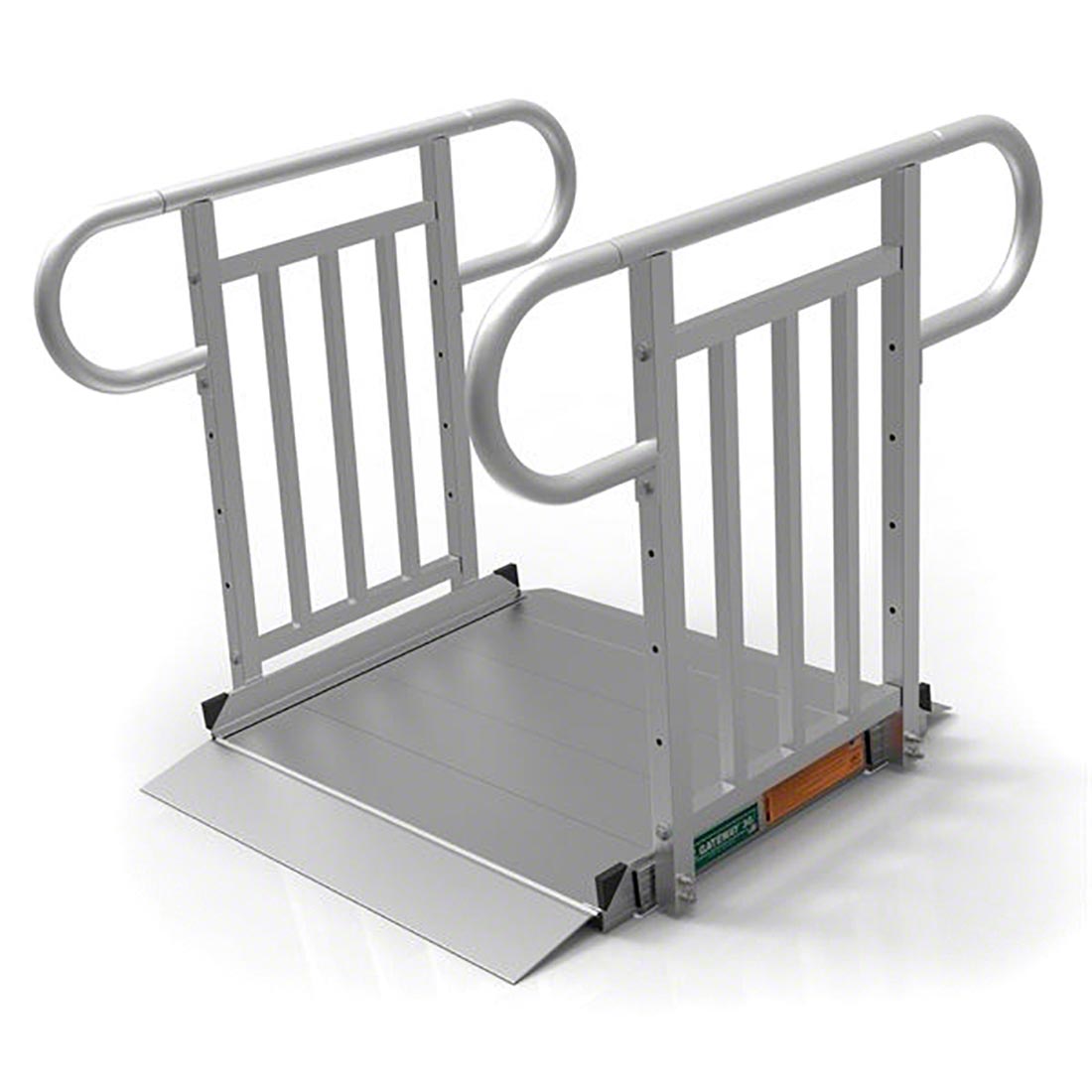

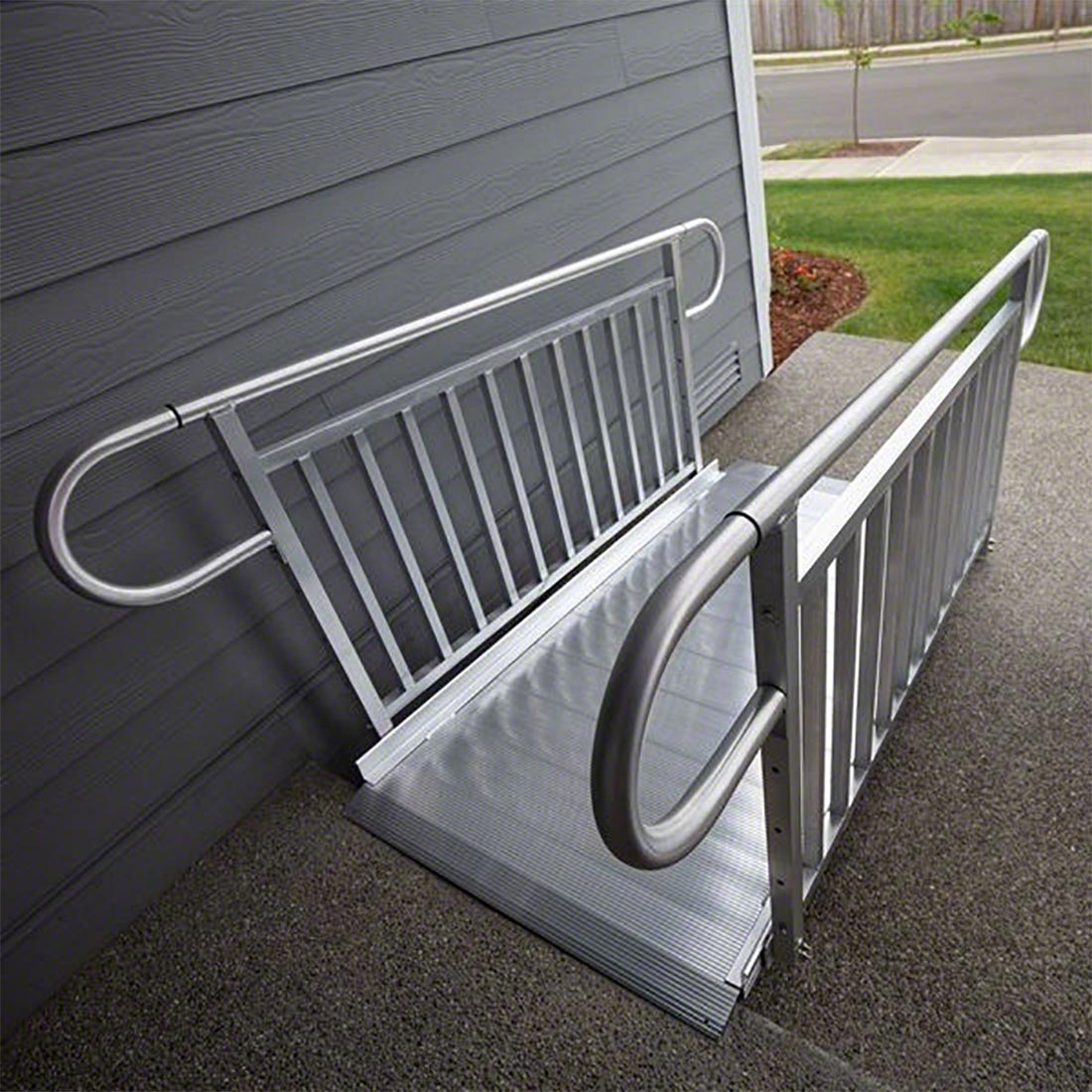

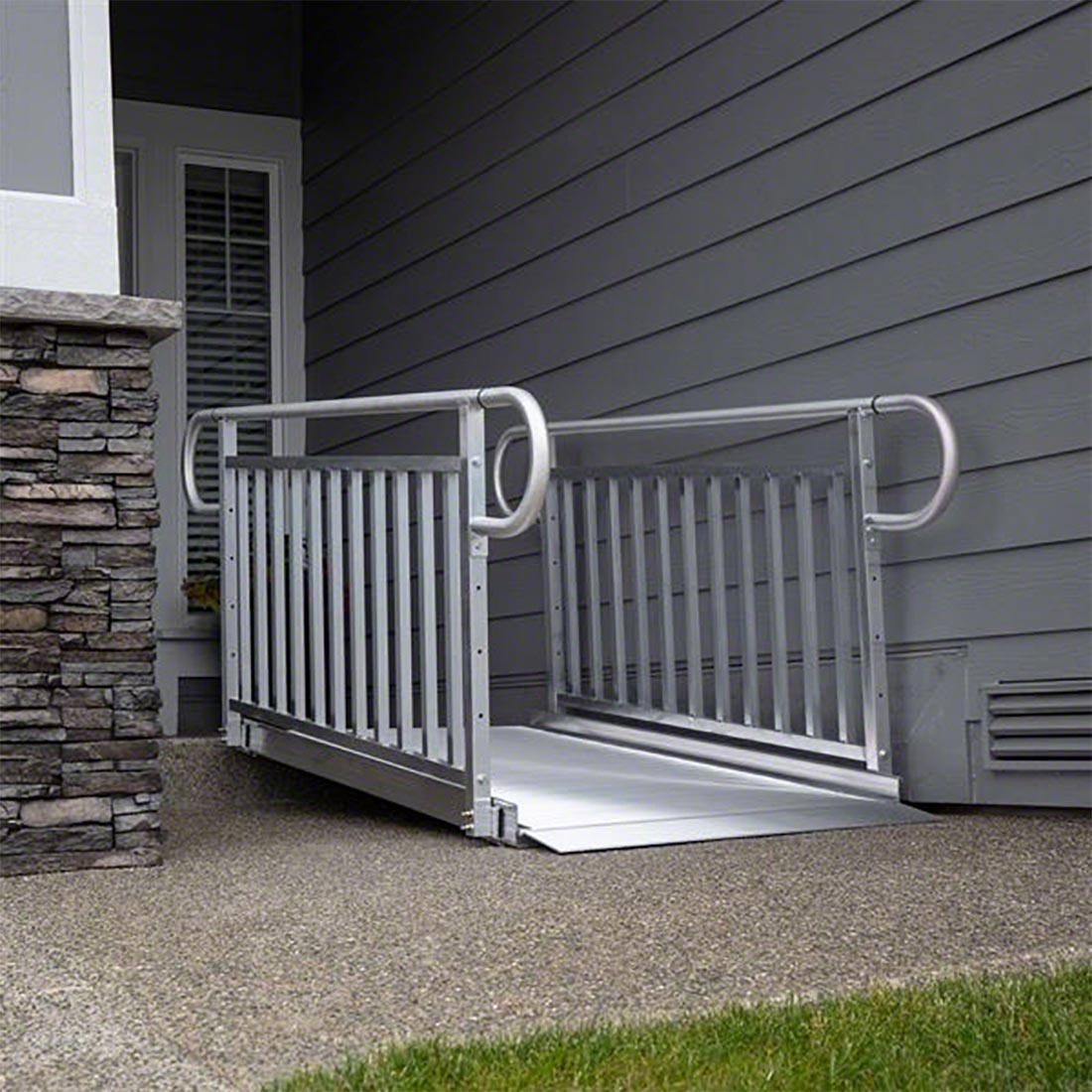

Gateway 3G With Vertical Picket Handrails
| GATEWAY3G 03VP | GATEWAY3G 04VP | GATEWAY3G 05VP | GATEWAY3G 06VP | GATEWAY3G 07VP | GATEWAY3G 08VP | GATEWAY3G 09VP | GATEWAY3G 10VP |
|---|
| Made of Aluminum | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Slip-Resistant surface | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Usable Size | 3'L x 36"W x 34.5"H | 4'L x 36"W x 34.5"H | 5'L x 36"W x 34.5"H | 6'L x 36"W x 34.5"H | 7'L x 36"W x 34.5"H | 8'L x 36"W x 34.5"H | 9'L x 36"W x 34.5"H | 10'L x 36"W x 34.5"H |
| Overall Size | 3'L x 41.75"W x 36"H | 4'L x 41.75"W x 36"H | 5'L x 41.75"W x 36"H | 6'L x 41.75"W x 36"H | 7'L x 41.75"W x 36"H | 8'L x 41.75"W x 36"H | 9'L x 41.75"W x 36"H | 10'L x 41.75"W x 36"H |
| Accommodates heights up to | 4" | 6" | 7" | 9" | 10" | 12" | 13" | 15" |
| Weight | 46 lbs | 58 lbs | 68 lbs | 78 lbs | 90 lbs | 98 lbs | 118 lbs | 128 lbs |
| Weight Capacity | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs | 1,000 lbs |
| For wheelchairs & scooters | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
NOTE: Weights and dimensions are approximate and subject to change. For additional specs and dimensions see Downloadable Manuals & Guides above.
