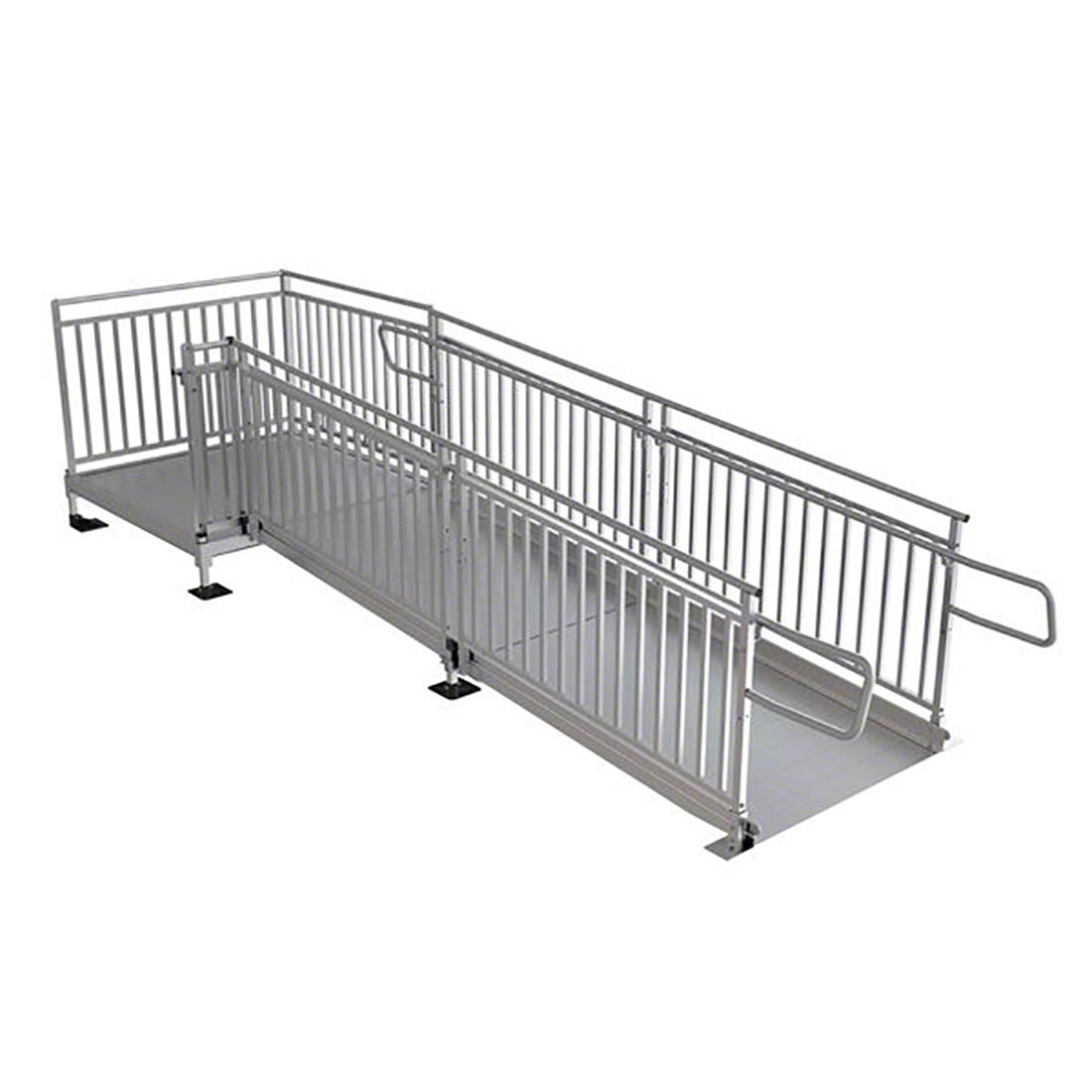

EZ-Access Pathway HD Solo Code-Compliant Aluminum Ramp with Guard Rails

  • Fully compliant with ADA, IBC & OSHA
  • Lightweight, virtually maintenance free
  • Easy to assemble in a few hours
In Stock

Usually leaves our warehouse the same or next business day.

Ramp Length (excluding landing):


Retail: $4,570.72
Price: $2,937.99
You Save $1,632.73 (35.7%)
Quantity:

No fee net 30 terms and 6 month extended payments for businesses. Learn More


EZ-Access Pathway HD Solo Code-Compliant Aluminum Ramp with Guard Rails

A Fully Code-Compliant Aluminum Wheelchair Ramp for Commercial Spaces

The EZ-ACCESS® PATHWAY HD Solo Code-Compliant Modular Ramp System is engineered to provide safe, customizable, code-compliant access to commercial and institutional spaces. This all-aluminum, commercial-grade ramp system is lightweight and virtually maintenance-free. The entire system is easy to install in just a few hours with minimal tools.

Standard configuration kits include your choice of 16 ramp lengths from 6' to 36' long with a 5'x5' landing platform, picketed handrails, end loops, legs and feet. Installation is quick and easy with universal components, pre-assembled sections, and independently adjustable legs. The Pathway HD system is modular, so it can easily be reconfigured, moved or expanded if your mobility needs change.

Measurement: For a standard 12:1 slope (4.8° angle), choose the ramp length that matches your rise (e.g., an 8-foot ramp for an 8-inch rise) or see the Measurement Guide for other angles and options.

A Fully Code-Compliant Aluminum Wheelchair Ramp for Commercial Spaces

The EZ-ACCESS® PATHWAY HD Solo Code-Compliant Modular Ramp System is engineered to provide safe, customizable, code-compliant access to commercial and institutional spaces. This all-aluminum, commercial-grade ramp system is lightweight and virtually maintenance-free. The entire system is easy to install in just a few hours with minimal tools.

Standard configuration kits include your choice of 16 ramp lengths from 6' to 36' long with a 5'x5' landing platform, picketed handrails, end loops, legs and feet. Installation is quick and easy with universal components, pre-assembled sections, and independently adjustable legs. The Pathway HD system is modular, so it can easily be reconfigured, moved or expanded if your mobility needs change.

Measurement: For a standard 12:1 slope (4.8° angle), choose the ramp length that matches your rise (e.g., an 8-foot ramp for an 8-inch rise) or see the Measurement Guide for other angles and options.

Features
  • Complies with ADA, IBC, OSHA, and most local code guidelines
  • Features a 48-inch wide walkway leads to a 5-foot square landing platform
  • All walking surfaces have a raised-rib tread for cross-directional traction

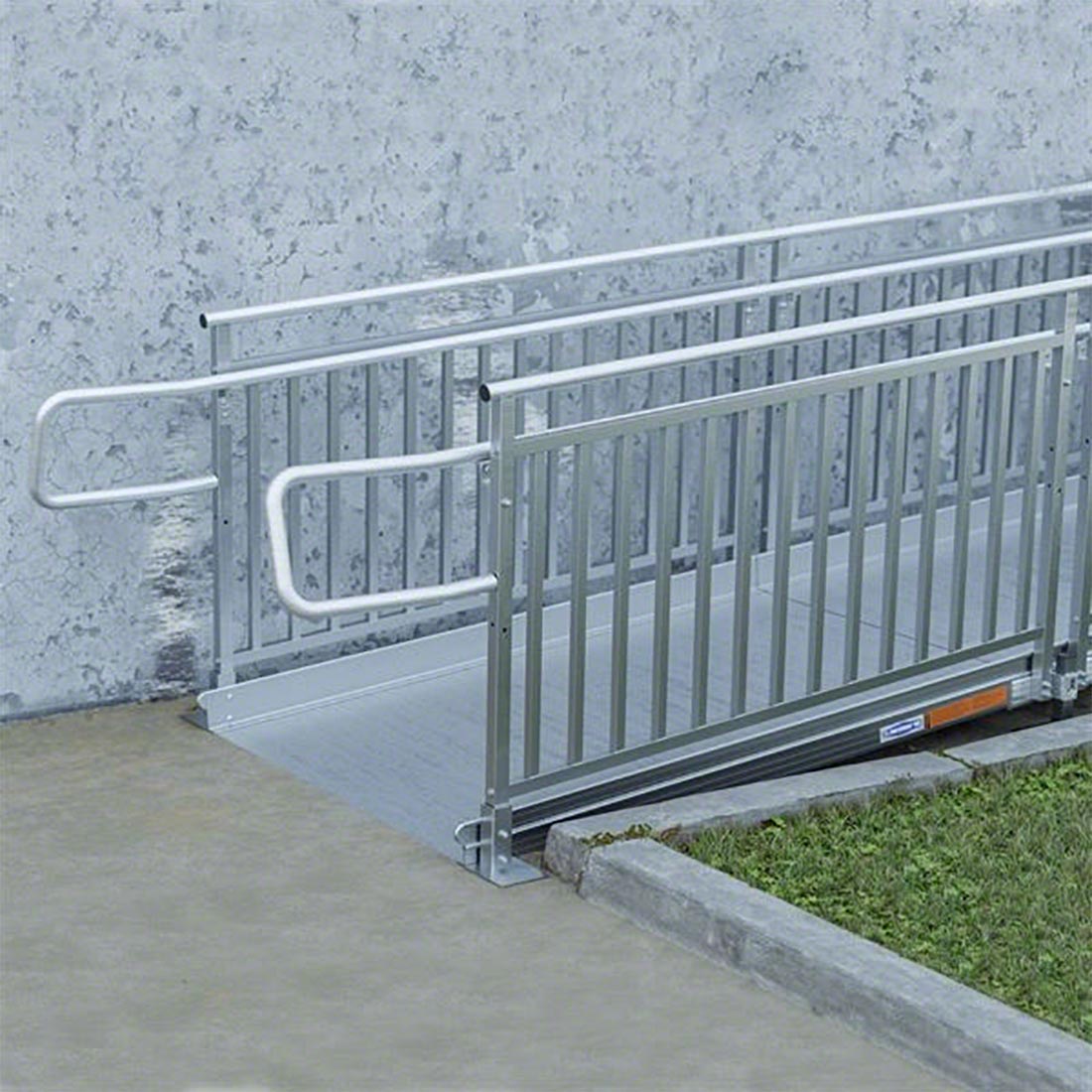

  • Ramp sides feature 4-inch curbs, continuous handrails, and top rail with picketed inserts
  • Legs are independently adjustable for easy leveling over uneven ground
  • Manufactured from aircraft-quality, corrosion-resistant aluminum to withstand years of high-traffic use in all weather conditions, will not rust or rot
  • Easy to install in a few hours by 2-3 people
  • Available in 16 ramp lengths from 6' to 36' long
Downloadable Manuals & GuidesVideo
Additional Information
  • Overall Dimensions & Weight:

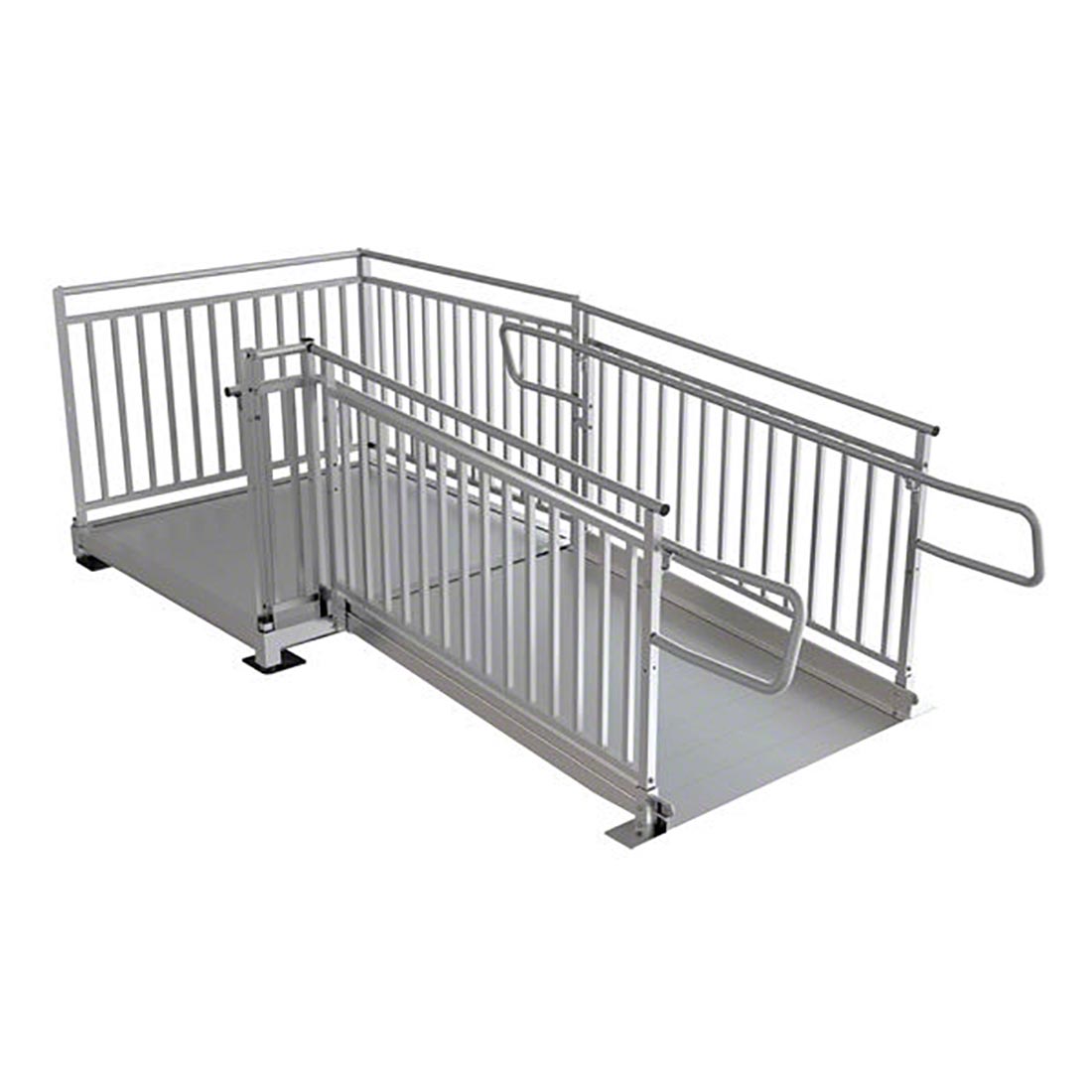

    • 6' Ramp: 154.5"L x 65.5"W, 250 lbs
    • 8' Ramp: 178.5"L x 65.5"W, 315 lbs
    • 10' Ramp: 202.5"L x 65.5"W, 345 lbs
    • 12' Ramp: 226.5"L x 65.5"W, 390 lbs
    • 14' Ramp: 255.5"L x 65.5"W, 457 lbs
    • 16' Ramp: 274.5"L x 65.5"W, 487 lbs
    • 18' Ramp: 298.5"L x 65.5"W, 532 lbs
    • 20' Ramp: 322.5"L x 65.5"W, 598 lbs
    • 22' Ramp: 346.5"L x 65.5"W, 628 lbs
    • 24' Ramp: 370.5"L x 65.5"W, 674 lbs
    • 26' Ramp: 394.5"L x 65.5"W, 742 lbs
    • 28' Ramp: 418.5"L x 65.5"W, 772 lbs
    • 30' Ramp: 442.5"L x 65.5"W, 817 lbs
    • 32' Ramp: 466.5"L x 65.5"W, 1012 lbs
    • 34' Ramp: 490.5"L x 65.5"W, 1042 lbs
    • 36' Ramp: 514.5"L x 65.5"W, 1088 lbs

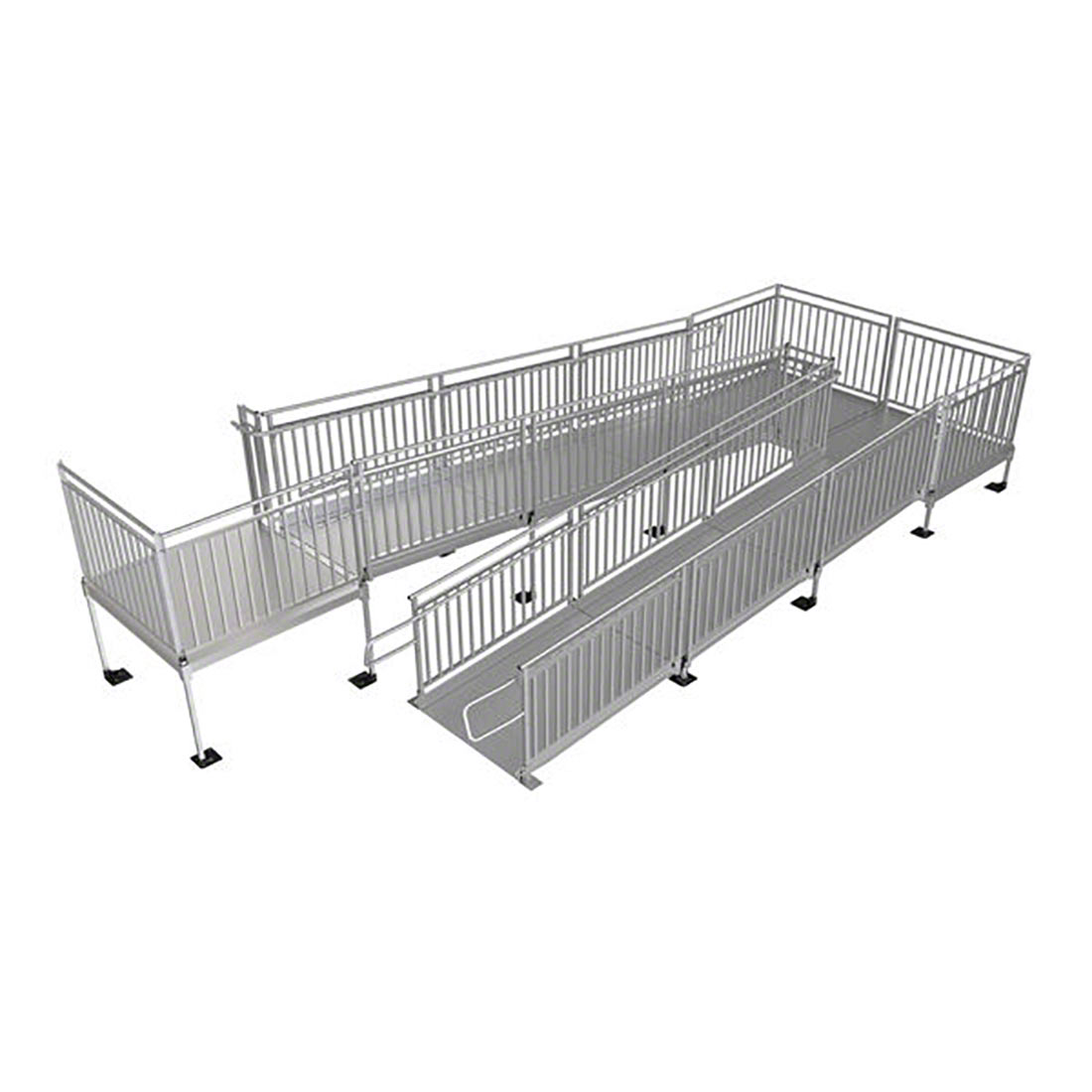

    • 36' Turnback Ramp: "L x "W, 1232 lbs
  • Weight Capacity: 100 lbs per square foot
